ТМ “Ubiquiti”

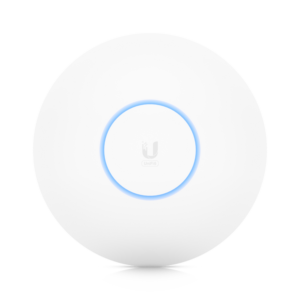

Обладнення ТМ “Ubiquiti”, а саме: Access Point U6 Long-Range дає розгорнути найсучаснішу Wi-Fi мережу 6 покоління за допомогою наступних характеристик обладнення:


PRODUCT SUMMARY

Mechanical
Dimensions Ø220 x 48 mm (Ø8.66 x 1.89″)
Weight Without mount: 800 g (1.76 lb)
With mount: 930 g (2.05 lb)
Enclosure material Plastic
Mount material SGCC Steel
Weatherproofing IP54
Hardware
Management interfaces Ethernet
Bluetooth
Networking interface (1) GbE RJ45 port
Button Factory reset
LED* White/Blue
*Due to chip supply shortages, the U6 LR’s LED has been limited to only white and blue color modes.
Power method PoE+, passive PoE (48V)
Power supply UniFi PoE switch
48V, 0.5A PoE adapter (not included)
Supported voltage range 44—57V DC
Max. power consumption 18.5W
Max. TX power
2.4 GHz 26 dBm
5 GHz 26 dBm
MIMO
2.4 GHz 4 x 4
5 GHz 4 x 4
Throughput rate
2.4 GHz 600 Mbps
5 GHz 2400 Mbps
Antenna gain
2.4 GHz 4 dBi
5 GHz 5.5 dBi
Mounting Wall/ceiling (included)
Operating temperature -30 to 60° C (-22 to 140° F)
Operating humidity 5 – 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/b/g
WiFi 4/WiFi 5/WiFi 6
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 300+
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4) 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160)
